Dovetail Drawers | Dovetail Drawer Boxes | Solid Wood Drawers in Mesa

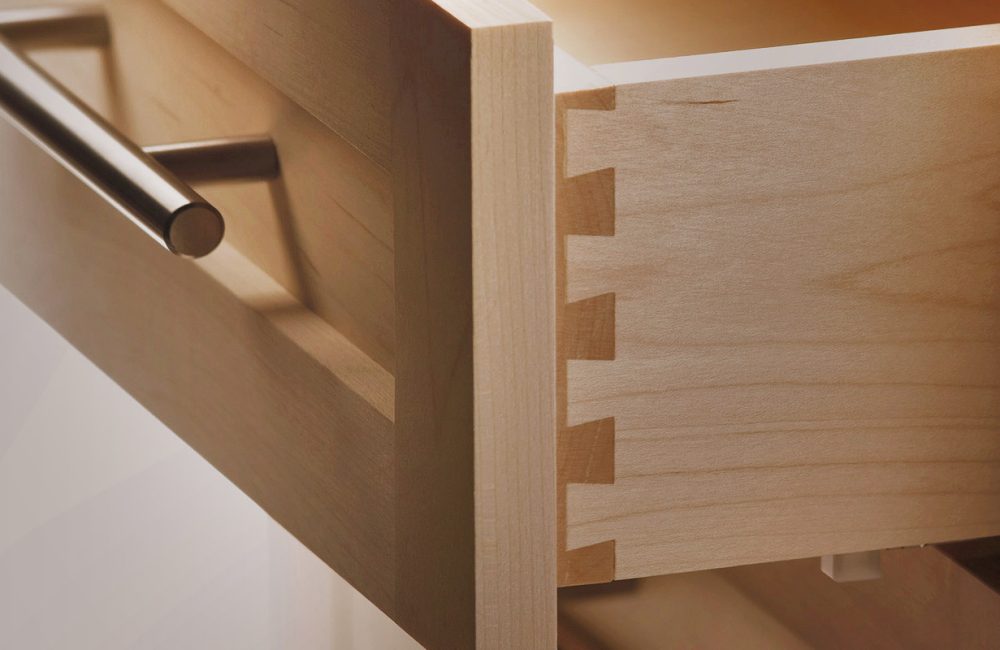

Dovetail Drawers: The dovetail joint is a common joint technique in dovetail drawer box construction that consists of a series of cuts that interlock to form a flat edge at the corners and sides and does not require glue or additional hardware to stay fastened. Drawer Connection does however, use glue on all joints. The dovetail joint is most commonly used to join the sides and front pieces of a drawer with no nails or screws showing through to mar the beauty of the drawer front.

Modern machine tools make dovetail cuts easier and faster, for efficient manufacture and production of large or small orders with consistent precision. Drawer Connection uses wood such as maple, alder, aspen, oak and other solid species, as well as birch plywoods and melamines on MDF cores for all of our dovetail drawer boxes. Drawer Connection can produce dovetail drawer boxes for custom design specifications on orders of any size.


Examples of dovetail joint drawer boxes:

dovetail drawer joint

Dovetail Corners

  • Dovetail corners offer an old world high quality look and feel at a price you can afford.
  • AWI Premium Grade
  • Minimum height 2” max height 24”
  • No setup charges for odd heights
  • Exceptional joint for solids and plywood's
  • Custom grade for MDF Core melamine's
example of a dovetail drawer joint





drawer-connection-logo

Dovetail Drawer Options:

drawer-connection-logo


Laser Engraved Dovetail Drawer Boxes

Laser Engraving:

Top Edge Detail: PVC Edge tape • Clear foil • Flat top • Chamfered edge • Wood Edge tape

Drawer Connection offers your logo engraved in the front top right side of the inside of the drawer box. The laser will engrave on all materials. Your logo is a great marketing tool for your company. Branding your name is everything.

angled dovetail drawer box options

Angled Drawers:

  • Pantry rollouts

  • Under sink storage

  • Pots and pans storage





Dovetail Drawer Box Drawer Scoop Options

Drawer Scoops:

Drawer Connection offers three different choices.

  • Option 1: 3 x 2
  • Option 2: 4 x 1
  • Option 3: 2.25 x .75

Scoops are used as an easier method to slide open a drawer box. Drawer Connection, Inc offers three types of standard drawer scoops, they are applied on the center of the front of the box.

dovetail drawer file-drawer-options

File Drawers:

Connection offers notching for file slots.

  • 12 1/4” Letter
  • 15 1/4” Legal
  • Standard placement front to back
  • Lateral placement side to side
  • File bars come in two sizes 1/8” x 1/2” and 1/8” x 3/4”
  • Minimum outside width for letter is 14”
  • Minimum outside width for legal is 17”


Dovetail drawer box divider options

Dividers:

Drawer Connection offers dividers per customer specs.

  • Fixed
  • Loose
  • Dadoed
  • Nailed

Drawer Glides

Drawer Connection offers under mount softclose drawer glides as well as full extension sidemount drawer glides. Ask represetative for details.

Dovetail Drawer Notching & Drilling Options

Notching & Drilling:

Connection offers notching and drilling

  • Clips installed
  • Bottom placement must be 1/2" up from bottom edge
  • Most manufacturers clips available

drawer-connection-logo

Drawer Sizes:

drawer-connection-logo

dovetail drawer bottom picture

DOVETAIL DRAWER OPTION 1(1/4” Bottom):

Bottom raised 3/8” from bottom edge of drawer box. We use this on all standard boxes receivingside mount or bottom mount drawer glides.
half inche raised from the bottom dovetail drawer

DOVETAIL DRAWER OPTION 2(1/4” Bottom):

Bottom raised 1/2” from bottom edge of drawer box. We use this on all boxes receiving undermount soft-close drawer glides.
dovetail-drawer-half-inch-bottom

DOVETAIL DRAWER OPTION 3(1/2” Bottom):

Both options 1 and 2 apply for 1/2” bottoms with the exception of undermount glides. If bottoms being raised 1/2” up there will be a hole approximately 1/4” wide where the groovegoes through the side and can’t be hidden bythe dovetail.
