Dowel Drawers | Custom Dowel Drawer Manufacturer in Mesa, AZ


Custom dowel joinery is a common joint technique in drawer construction, used to reinforce a butt joint, where two pieces of wood fit together at the sides using wooden pins (dowels) that fit into corresponding pre-cut holes. Drawer Connection uses pre-glued dowels in the assembly process, maintaining the structural integrity of each drawer and ensuring that all dowels stay fastened securely. Doweled drawer construction is most commonly used to join the sides and front pieces of a drawer with no nails or screws showing through to mar the beauty of the drawer side.

Modern machine tools make dowel cuts easier and faster, for efficient manufacture and production of large orders with consistent precision. Drawer Connection uses materials such as melamines on particle board, as well as 9-ply baltic birch in their dowel joint drawer boxes. Drawer Connection can create dowel drawers for custom design specifications on large or small orders.

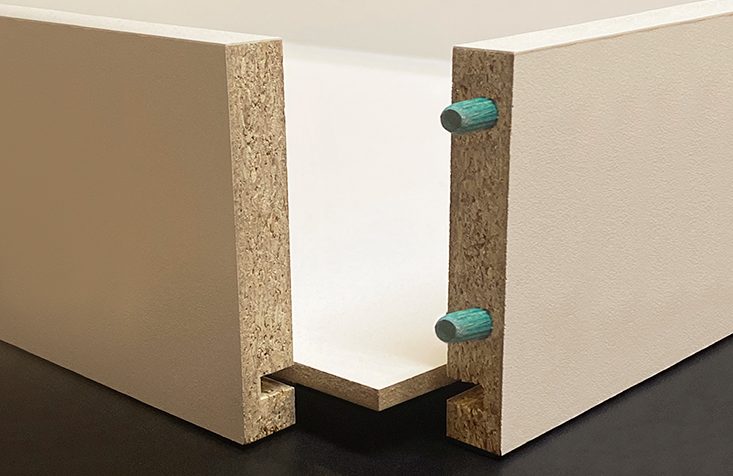

Examples of custom dowel joint drawer boxes:

kitchen dowel drawer joint

Doweled Corners

  • Doweled corners offer a cost effective method to purchasing drawers.
  • Easy inventory control
  • Fast assembly
  • Low cost materials
  • AWI Premium Grade
  • Manufactured with 6mm x 30mm hardwood pre-glued dowels
  • Fronts and back 1/8" lower than sides
example of a custom dowel drawer joint manufactured at dc drawers


drawer-connection-logo

Drawer Options:

drawer-connection-logo

dovetail-drawer-options

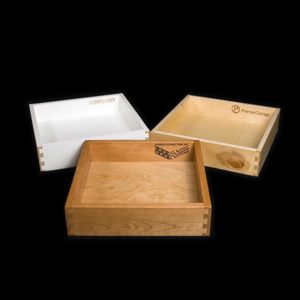

Laser Engraving:

Top Edge Detail: PVC Edge tape • Clear foil • Flat top • Chamfered edge • Wood Edge tape

Drawer Connection offers your logo engraved in the front top right side of the inside of the drawer. The laser will engrave on all materials. Your logo is a great marketing tool for your company. Branding your name is everything.

angled dovetail drawer option

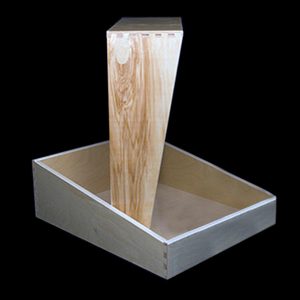

Angled Drawers:

  • Pantry rollouts

  • Under sink storage

  • Pots and pans storage





dovetail-drawer-scoops

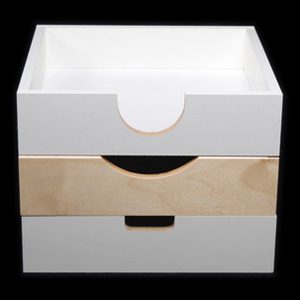

Drawer Scoops:

Drawer Connection offers three different choices.

  • Option 1: 3 x 2
  • Option 2: 4 x 1
  • Option 3: 2.25 x .75

Scoops are used as an easier method to slide open a drawer box. Drawer Connection, Inc offers three types of standard drawer scoops, they are applied on the center of the front of the box.

file-drawer-options

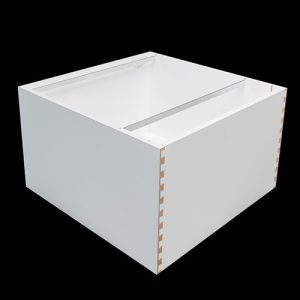

File Drawers:

Connection offers notching for file slots.

  • 12 1/4” Letter
  • 15 1/4” Legal
  • Standard placement front to back
  • Lateral placement side to side
  • File bars come in two sizes 1/8” x 1/2” and 1/8” x 3/4”
  • Minimum outside width for letter is 14”
  • Minimum outside width for legal is 17”


drawer-dividers

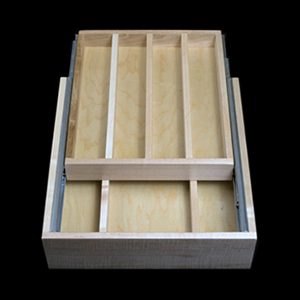

Dividers:

Drawer Connection offers dividers per customer specs.

  • Fixed
  • Loose
  • Dadoed
  • Nailed

Drawer Glides

Drawer Connection offers under mount softclose drawer glides as well as full extension sidemount drawer glides. Ask represetative for details.

drawer-notching-and-drilling

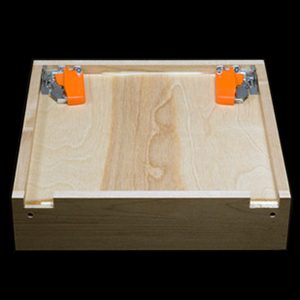

Notching & Drilling:

Connection offers notching and drilling

  • Clips installed
  • Bottom placement must be 1/2" up from bottom edge
  • Most manufacturers clips available



dowel-drawer-bottom-picture

OPTION 1(1/4” Bottom): Bottom raised 3/8” from bottom edge of drawerbox. We use this on all standard boxes receivingside mount or bottom mount drawer glides.
dowel-drawer-glide-slide-custom

OPTION 2(1/4” Bottom): Bottom raised 1/2” from bottom edge of drawerbox. We use this on all boxes receiving undermount soft-close drawer glides.
dowel-drawer-half-inch-bottom

OPTION 3(1/2” Bottom): Both options 1 and 2 apply for 1/2” bottomswith the exception of undermount glides. Ifbottoms being raised 1/2” up there will be ahole approximately 1/4” wide where the groovegoes through the side and can’t be hidden bythe dovetail.
